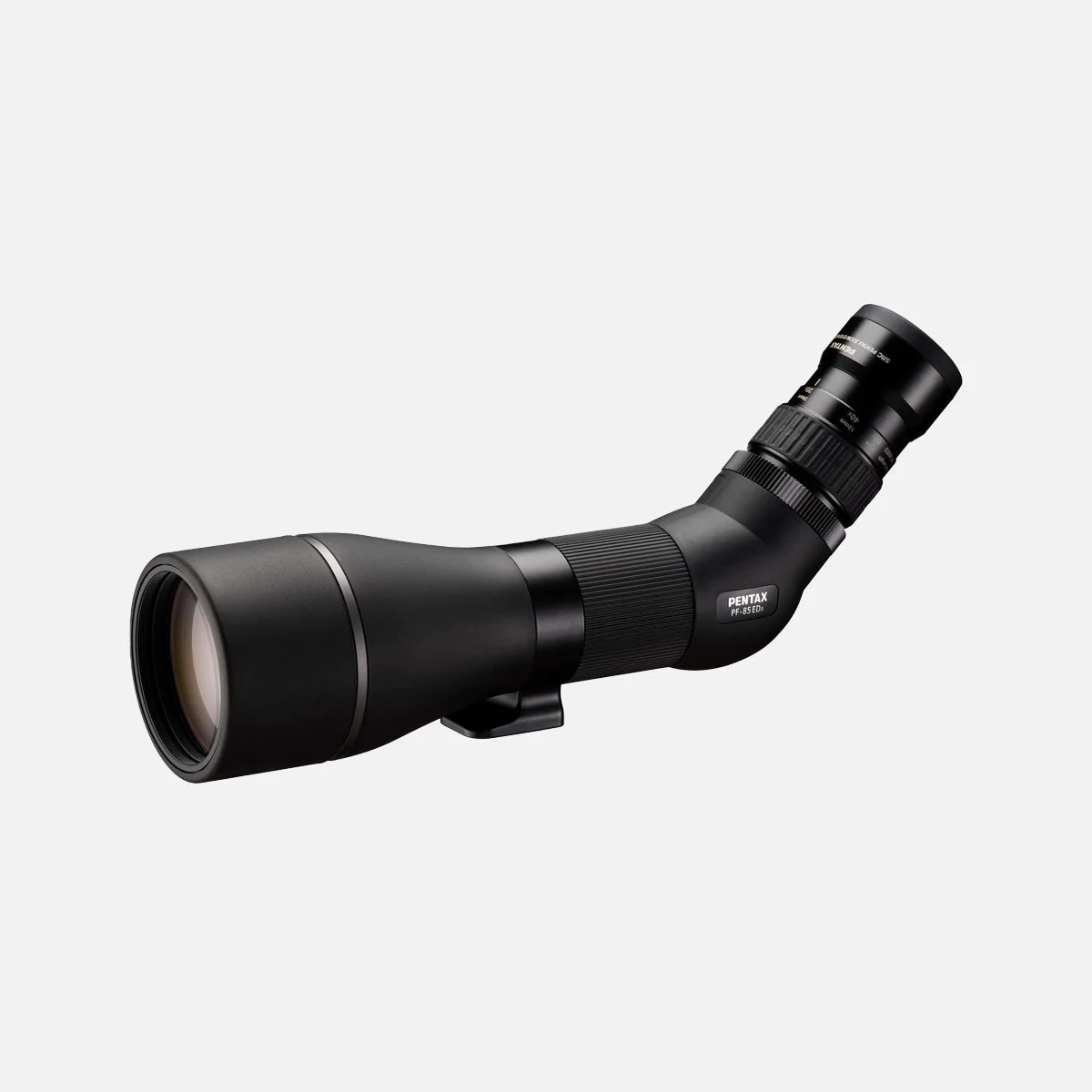

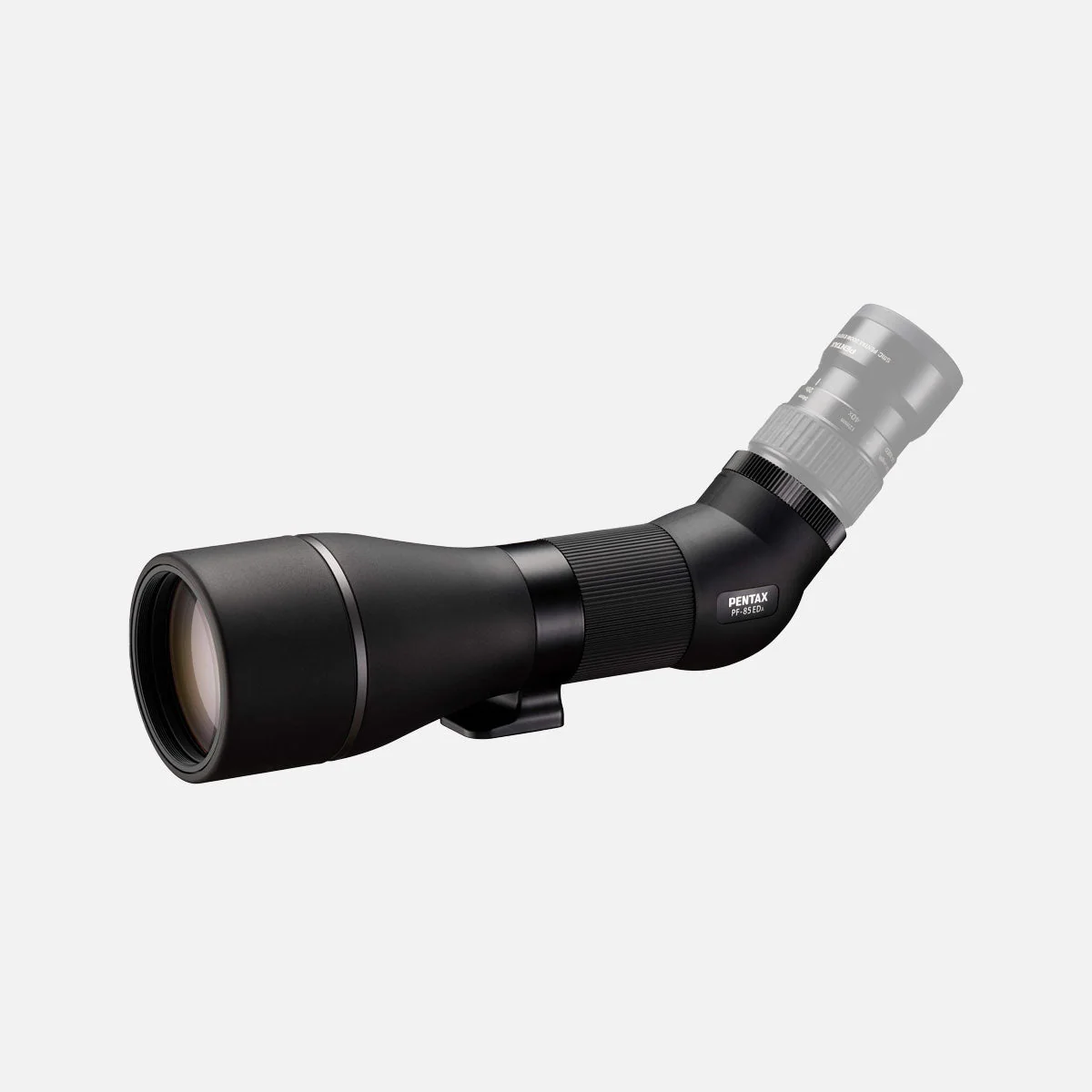

PENTAX PF-85EDA:

A large-aperture, high-performance spotting scope,
featuring the latest optics in a compact, portable body

Nature observation, and bird spotting in particular, is increasingly becoming a popular sport, offering a wide range of activities from animal observation to excursions to the stars. More and more often, the performance of binoculars is no longer sufficient. This is where PENTAX spot-ting scopes offer significantly extended fields of view and are able to show even the finest de-tails sharply and with excellent contrast.

Bright, clear field of view

The PENTAX PF-85EDA features ED (Extra-low Dispersion) glass optical elements to effectively minimize chromatic aberrations, and the latest multi-layer coating process to drastically reduce reflectance when compared with conventional models. With the combination of a full multi-coating process applied to all optical elements and a phase coating process applied to the roof prism, this spotting scope delivers a clear, high-contrast field of view for high-quality observations.

Compact body for excellent portability

Despite its large, 85mm-diameter objective lens, this spotting scope is designed to be compact and highly portable, thanks to the incorporation of the latest optical design featuring a roof prism. This compact design makes it easy for the user to casually carry it to a destination, and also comes in handy in a variety of applications, including birdwatching, nature and astronomical observations, and score checking in archery contests.

Compatibility with a range of eyepieces

The eyepiece mount features an American-standard 31.7mm (1.25 inches) sleeve to accept a range of eyepieces, including the XF series specifically designed for PENTAX spotting scopes, and the XW series perfect for astronomical observation. This compatibility allows the user to choose the eyepiece that best accommodates a specific application.

Slanted-barrel design

The eyepiece section is slanted upward at a 45-degree angle, allowing the user to easily adjust the eye level and observe the subject in a natural, relaxed posture without the need to look up. This slanted-barrel design even allows the user to observe the subject over a long period of time in comfort while sitting in a chair.

Waterproofed for use in a rain

By inserting a dust-proof glass element in the eyepiece mount, the spotting scope is de-signed to be airtight for outstanding waterproof performance (equivalent to JIS Class 7; with water resistance to a depth of one meter*) for dependable use even in the rain or mist.
* This model cannot be used underwater.

Nitrogen-filled body for a clear field of view without fogging

The interior of this spotting scope is filled with nitrogen gas to prevent fogging caused by sudden temperature changes, assuring a clear field of view even in demanding weather conditions.

Optional kit version

The PENTAX PF-85EDA is also available as a kit version with the SMC PENTAX ZOOM EYEPIECE 8-24MM. In addition to the many advantages of the eyepieces in the XW series, this eyepiece offers a variable imaging range with a magnification factor of between 20x and 60x, which corresponds to a field of view of 33m to 17m at 1000m.

Original PENTAX eyepieces

The performance of a spotting scope can only be as good as the performance of the eyepieces used. That is why we offer a comprehensive range of eyepieces for many applications. With their functional, practical focal lengths, the XW eyepiece series offers a comprehensive range for all kinds of applications, from observing stars at low magnification to observing planets at high magnification. High-quality optics for exceptional image quality

The high-performance optics of the XW series consist of lanthanum glass elements with high refractive power and particularly low dispersion, which produce a balanced image with minimal aberrations. They have been specially developed to reduce the disturbing blackout effect by effectively compensating for the spherical aberration of the pupil.

PENTAX proprietary multi-coating for outstanding light transmission
All lens surfaces that come into contact with the air are treated with the original multi-layer coating, while all laminated surfaces are provided with the innovative partial coating. This achieves a light transmission of more than 90 per cent (96 per cent at 550 nm) in the visible spectral range.

Advanced light shielding technology for improved image contrast
Thanks to PENTAX's advanced composition simulation technology, the XW series has a light-shielding diaphragm in the most effective position to dramatically reduce internal reflections for a brighter, higher-contrast image.

Weatherproof construction for all-weather viewing
The XW series features a JIS Class 4* weatherproof design that allows use in drizzle or nighttime dew.
* The XW series eyepieces are not designed for underwater use and should not be sub-merged in water.

Universal connection mount
With the XW series, you have a choice of two mounting diameters: The 31.7 mm American standard version and the 50.8 mm (two inch) version. If you remove the screw-on eyecup, you get a screw thread with a diameter of 43 mm and a pitch of 0.75.

You can find more information about PENTAX Eyepieces following this link ...

SPECIFICATIONS

PF-85EDA - Spottingscope

Type	Roof prism (45° tilted)
Lens Construction	5 elements in 4 groups, ED glass elements with 85mm effective aperture
Eyepiece Ring Diameter	31.7 mm (1.25 in.)
Focus Range/div>	About 5 m to infinity
Eyepiece Ring	Collet type
Weather Protection	Waterproof (equivalent to JIS Class 7 Water resistance to a depth of one meter, Nitrogen filled
Dimensions	approx. 347 x 116.5 x 101.8 mm approx. 13.7 x 4.6 x 4.0 in.
Weight	approx. 1,600 g approx. 56.5 oz.
Included accessories	Case Eyelens cap Lens Cap O-LC86 SMC PENTAX Zoom Eyepiece 8-24mm (KIT ONLY)
Art. No.	70970 - SPOTTING SCOPE PF-85EDA 70971 - SPOTTING SCOPE PF-85EDA KIT with SMC PENTAX ZOOM EYEPIECE 8-24MM
Product launch	February 2024

SPECIFICATIONS

SMC PENTAX ZOOM EYEPIECE 8-24MM
(included in the optional Kit)

Type	Zoom Eyepiece 8-24mm
Magnification	20x / 60x
Real field of view	1.9 / 1.0
Apparent Field of View	38 / 60
Field of view at 1000m	33m / 17m
Field of view at 1000yard	99ftm / 51ft
Exit pupil aperture	4,3mm / 1,4mm
Eye relief	18mm / 22mm
Distance from eyepiece rubber in parentheses	5mm / 9mm
Attachment diameter	31.7mm
Relative brightness	18.1 / 2.0

PENTAX PF-85EDA:

A large-aperture, high-performance spotting scope, featuring the latest optics in a compact, portable body

Bright, clear field of view

Compact body for excellent portability

Compatibility with a range of eyepieces

Slanted-barrel design

Waterproofed for use in a rain

Nitrogen-filled body for a clear field of view without fogging

Optional kit version

Original PENTAX eyepieces

SPECIFICATIONS

PF-85EDA - Spottingscope

SPECIFICATIONS

SMC PENTAX ZOOM EYEPIECE 8-24MM(included in the optional Kit)

A large-aperture, high-performance spotting scope,
featuring the latest optics in a compact, portable body

SMC PENTAX ZOOM EYEPIECE 8-24MM
(included in the optional Kit)

PENTAX

PENTAX 17

SS TEE PENTAX LOGO - T-Shirt

PENTAX WG-1000 Digital Camera

SPOTTING SCOPE PF-85EDA

Eyepiece smc PENTAX XW-3.5

PENTAX 32GB SD Card

Rechargeable L-Ion Battery D-LI92(B)

Rechargeable battery DB-110

HD Pentax-DA AF REAR CONVERTER 1,4AW

SOFT CASE RICOH SC-900

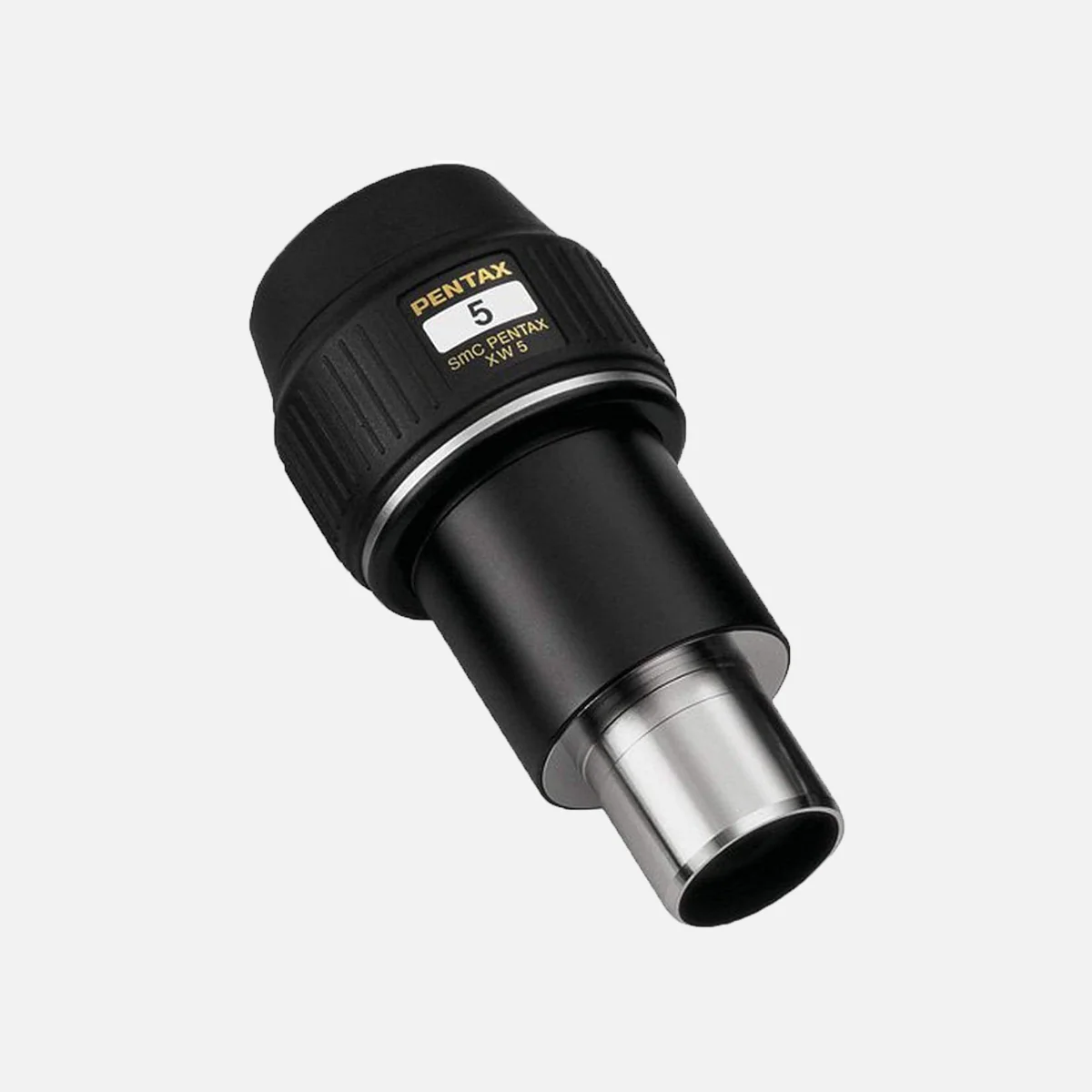

Eyepiece smc PENTAX XW-5
